High-Performance Canister Load Cells
Industrial Load Cells & Force Sensors for Precision Weighing
When your operations demand uncompromising accuracy in high-capacity weighing applications, compromising on load cell quality isn't an option. Canister load cells combine compact design with affordability for both single and multiple-point weighing applications, featuring rugged hermetic sealing that protects sensitive elements from harsh industrial environments. VPG Force Sensors delivers the performance, precision, and expertise that only one of the world's largest load cell manufacturers can provide—backed by over 60 years of engineering excellence across our trusted Revere, Sensortronics, Tedea-Huntleigh, and Celtron brands.
Whether you're designing truck scales that weigh millions of pounds daily, monitoring critical tank levels in chemical processing, or measuring forces in industrial automation, our canister load cells solve your most demanding measurement challenges with proven reliability in the harshest environments.
What Are Canister Load Cells?
Canister load cells are cylindrical force sensors characterized by their canister-like shape that measure weight or pressure by converting applied mechanical force into electrical signals. Also known as low-profile, pancake, or universal load cells, canister load cells are compression force sensors designed for accurate weight and force measurement using internal strain gauges to detect shape changes caused by compressive forces.
The distinctive cylindrical design allows for exceptional precision in measurement while occupying minimal space—critical for applications where footprint matters. Their primary function is measuring axial compression, making them ideal for truck scales, tank weighing, silo measurement, and heavy-duty industrial weighing scenarios.
Core Features & Technical Advantages
Unmatched Durability for Harsh Environments
- Hermetically sealed construction with IP67/IP68 ratings ensures water resistance and longevity
- Stainless steel and alloy steel construction withstands extreme temperatures, humidity, and corrosive chemicals
- Welded-seal technology eliminates moisture ingress points for trouble-free operation
Superior Accuracy & Stability
- High-precision strain gauge technology delivers accuracies up to 0.03% of full scale
- Low-profile design minimizes sensitivity to extraneous loads and moments
- NTEP and OIML certifications available for legal-for-trade applications
- Excellent repeatability and long-term stability for consistent measurements
Versatile Capacity Range
- Available in capacities from 500 kg to 500,000 lbs (227 metric tons)
- Compression-only or tension/compression configurations available
- Single or dual bridge options for enhanced flexibility
Easy Integration & Installation
- High resistance to bending and off-axis loading with fatigue life greater than 100 million cycles
- Compatible with multiple mounting configurations for single-cell or multi-cell installations
- Standard cable terminations or connector options available
- Lower installation and calibration costs compared to alternative load cell designs
Who Manufactures the Best Canister Load Cells?
VPG Force Sensors is a globally renowned company and one of the foremost load cell manufacturers, providing reliable and accurate force measurement solutions with meticulous attention to detail using advanced manufacturing techniques and materials. Our canister load cell portfolio includes:

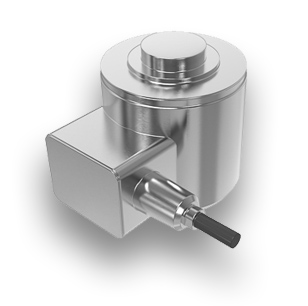

- Revere CP & CSP Series: Compression precision canister load cells designed for extreme industrial applications
- Revere Model 792: Single-column design with low deflection for truck scale and tank weighing
- Revere RLC Series: Low-profile, high-performance ring torsion canister load cells
- Sensortronics Canister Models: Premier stainless steel canister load cells for industrial markets
Each product line is engineered with our proven strain gauge technology, manufactured to precise tolerances for easier installation and calibration, and backed by comprehensive technical support from our global team.
Industry-Specific Applications
Transportation & Vehicle Weighing
Canister load cells excel in truck scales and railroad scales for heavy-duty applications. Our Revere Model 792 and CP series canister load cells are the industry standard for highway weigh stations, quarry operations, and logistics facilities where accuracy, durability, and legal-for-trade compliance are non-negotiable. These systems handle millions of weighments while maintaining certification accuracy even in extreme weather conditions.
Process Industry: Tank, Hopper & Silo Weighing
In food processing and chemical industries, canister load cells provide precise component measurement for batching systems where exact ingredient measurement is critical. Chemical manufacturers rely on our Sensortronics and Revere stainless steel canister load cells for continuous level monitoring in corrosive environments, from pharmaceutical reactors to agricultural fertilizer silos.
Material Testing & Quality Control
Canister load cells play a crucial role in measuring durability and determining product failure limits during destructive testing processes. Automotive manufacturers use our high-capacity canister load cells for crash testing and component validation, while aerospace companies depend on them for load monitoring and dynamic testing of aircraft components.

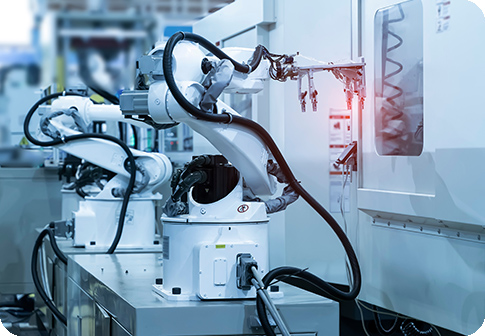

Industrial Automation & Manufacturing
From injection molding presses requiring precise clamping force measurement to assembly line quality control stations, canister load cells provide real-time force feedback for process optimization. Applications include automotive component testing, industrial automation, lifecycle testing on components like hinges and latches, and switch test stands.
Renewable Energy & Structural Monitoring
Canister load cells provide critical load verification in renewable energy and infrastructure projects. Wind turbine manufacturers and civil engineering firms rely on these high-capacity stainless steel sensors for tower erection, blade testing, and structural load validation where safety and compliance are essential.
Mining & Bulk Material Handling
In mining and aggregate operations, canister load cells ensure accurate weighing under extreme conditions. Quarry and bulk material facilities use ruggedized stainless-steel sensors for conveyor scales, hoppers, and load-out systems, maintaining precision despite shock, vibration, and harsh weather.
Experience the VPG Force Sensors Advantage
Don't let measurement uncertainty compromise your operation's efficiency, compliance, or profitability. VPG Force Sensors' canister load cells deliver the accuracy, durability, and reliability your critical applications demand—backed by decades of proven performance in the world's most challenging industrial environments.
Get Expert Guidance for Your Application
Finding the right load cell for your system requires careful consideration of capacity, accuracy, environment, and installation factors. Our experienced engineers are ready to help you choose the optimal solution.
