vLite™ technology

Redefining load cell technology.
Best performance at half the weight.

The future of load cells is here

Introducing vLite™ by Tedea-Huntleigh: the industry's lightest load cells for retail, portable, medical, and packaging scales. Lighter on materials, energy, and costs for shipping and storage, enabling a lighter carbon footprint. Using aviation-grade aluminum with an innovative hollow beam design, vLite™ technology delivers the highest precision and reliability.

Built on decades of VPG Force Sensors' expertise in force measurement, vLite™ represents a fundamental rethinking of load cell design. The hollow beam construction replaces the conventional solid aluminum bar – reducing weight by approximately 50% compared to equivalent products, without any compromise on performance or durability. The result is a load cell that meets the same fit, form, and function (FFF) as traditional designs, making it a drop-in replacement for OEMs looking to build lighter, more sustainable products.

For scale manufacturers and machine builders, lighter load cells mean lower shipping and storage costs, reduced material waste, and a smaller carbon footprint across the full product lifecycle. With certifications including OIML, NTEP, and ATEX, and backed by a 2-year warranty, vLite™ load cells meet the demands of the world's most rigorous weighing applications – from NICU infant scales to high-throughput packaging lines.

FIND THE EXACT SENSOR FOR YOUR APPLICATION

vLite™ – Lighter products

The vLite™ line includes several off-the-shelf models that are exchangeable with equivalent load cells, so you can create lighter products with existing designs.

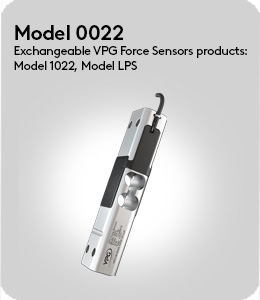

Model 0022 Low-Profile Aluminum Load Cell

Capacities: 10-40 kg
Single-point 350 x 350 mm platform

NTEP approved SKU’s:
00022-010K-D5-00X
00022-015K-D5-00X
00022-020K-D5-00X
00022-030K-D5-00X

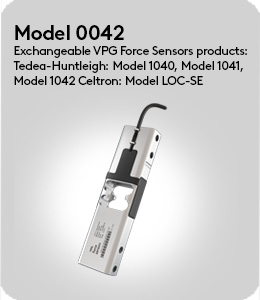

Model 0042 Medium-Profile Aluminum Load Cell

Capacities: 10-50 kg
Single-point 400 x 400 mm platform

NTEP approved SKU’s:
00042-010K-D5-00X
00042-015K-D5-00X
00042-020K-D5-00X
00042-030K-D5-00X
00042-040K-D5-00X

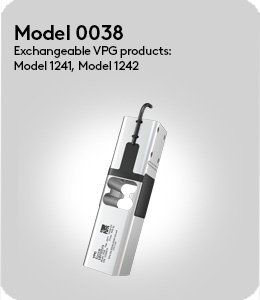

Model 0038 Medium-Profile, Medium-Width
Aluminum Load Cell

Capacities: 100-300 kg
Single-point 400 x 400 mm platform

SKUs:
00038-050K-D5-00X
00038-075K-D5-00X
00038-100K-D5-00X
00038-100K-D5-01X
00038-150K-D5-00X
00038-200K-D5-00X
00038-250K-D5-00X
00038-300K-D5-00X

Lightens the load

Ideal for low-weight applications
Lower weight reduces shipping and storage costs

Lighter environmental impact

Lighter carbon footprint across the product lifecycle
More sustainable disposal and recycling

Best-in-class quality

VPG’s renowned precision and reliability
Peace of mind for smooth production

Competitive differentiation

Enables products that stand out in the market
Allows high-end positioning for machines

A lighter solution for varied applications

Load cells made with vLite™ technology offer a lighter option for a range of mainstream weighing applications as well as medical and packaging machines. With manufacturing facilities worldwide and certifications including OIML, NTEP, and ATEX, VPG Force Sensors delivers the performance, precision, and global support that demanding OEMs require. Our innovative vLite™ technology now offers single point load cells that are 50% lighter than traditional designs, reducing material costs and environmental impact without compromising accuracy.
