Double-Ended Shear Beam Load Cells
Industrial Force Sensors for Heavy-Duty Weighing Applications
When accuracy, durability, and reliability are non-negotiable in your weighing operations, VPG Force Sensors delivers industrial-grade double-ended shear beam load cells engineered for the most demanding environments. Our double-ended shear beam transducers combine proven strain gauge technology with robust construction to solve the critical challenges facing industries that require precise force measurement in high-capacity applications—from truck scales to tank weighing systems.

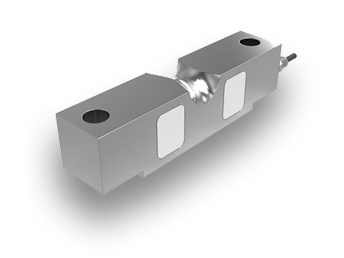

What is a Double-Ended Shear Beam Load Cell?
A double-ended shear beam load cell is a force transducer designed with mounting points at both ends and a load application point in the center. When force is applied, the beam experiences shear deformation measured by precision strain gauges bonded to the sensing element. This configuration converts mechanical force into an electrical signal proportional to the applied weight, while the dual-ended support structure provides exceptional stability and loading conditions common in industrial weighing.
Core Features of VPG Double-Ended Shear Beam Load Cells
Superior Load Distribution Design
Our double-ended shear beam load cells feature a dual-support mounting configuration with center loading, providing exceptional lateral forces that can compromise accuracy in real-world industrial conditions.
Heavy-Duty Capacity Range
Available in capacities from 5,000 lbs to 200,000+ lbs, VPG double-ended shear beam transducers accommodate medium to ultra-high capacity weighing applications without sacrificing precision or reliability.
Industrial-Grade Protection
Constructed from high-nickel alloy steel or 17-4 PH stainless steel with hermetically sealed enclosures rated to IP67/IP68 standards, ensuring consistent performance in harsh environments including exposure to moisture, dust, chemicals, and extreme temperatures.
High Accuracy with Minimal Maintenance
Advanced strain gauge technology delivers combined error rates of ±0.02% or better, while the robust design minimizes downtime and reduces total cost of ownership through extended service life and reduced calibration requirements.
Easy Integration and Installation
Pre-calibrated outputs and standardized mounting configurations simplify installation, reduce commissioning time, and integrate seamlessly with existing weighing indicators and control systems.
Who Manufactures the Best Double-Ended Shear Beam Load Cells?
VPG Force Sensors—uniting the heritage brands of Tedea-Huntleigh, Sensortronics, Revere, and Celtron—stands as one of the world's largest load cell manufacturers with over five decades of innovation in force measurement. Our double-ended shear beam load cells represent the culmination of extensive research, advanced strain gauge technology, and real-world testing in the harshest industrial environments. When precision, durability, and technical support matter, industry leaders choose VPG.
Industry Applications for Double-Ended Shear Beam Load Cells
Truck Scales and Weighbridges
VPG double-ended shear beam load cells are the workhorse of commercial vehicle weighing, delivering accurate measurements for compliance, logistics, and billing applications. A major logistics company reduced scale downtime by 40% after upgrading to VPG hermetically sealed load cells in their fleet management weighbridges

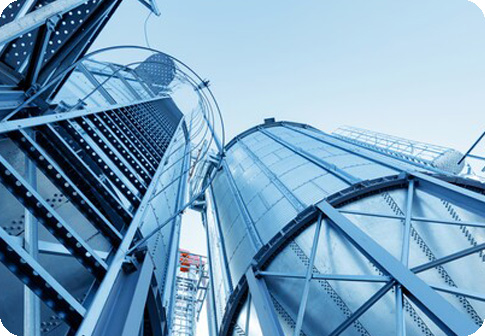

Tank and Silo Weighing Systems
For process industries requiring continuous inventory monitoring, our double-ended shear beam transducers provide reliable weight measurement for liquid and bulk solid storage vessels. Food processing plants, chemical manufacturers, and agricultural operations depend on VPG sensors for batch control and inventory management.
Hopper and Conveyor Weighing
Manufacturing and material handling operations use VPG double-ended shear beam load cells for dynamic and static weighing in batching, blending, and filling operations where precision directly impacts product quality and profitability.

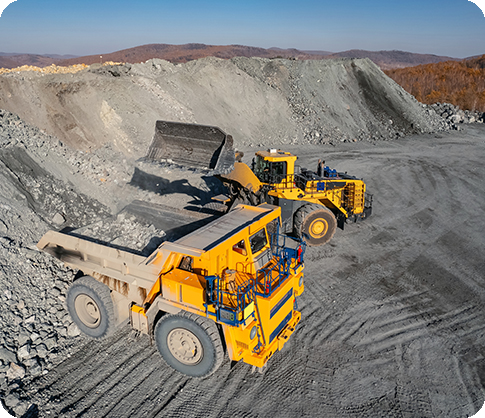

Agricultural and Construction Equipment
Onboard weighing systems for heavy machinery benefit from the low-profile design and vibration resistance of VPG force sensors, enabling operators to optimize payload and prevent overloading.
Main Uses for Double-Ended Shear Beam Load Cells
Double-ended shear beam transducers excel in high-capacity weighing applications including vehicle scales, railway track scales, platform scales, industrial tank and vessel weighing, bulk material storage monitoring, process control batching systems, and heavy machinery onboard weighing. Their robust design and high accuracy make them essential in industries where reliability and precision directly impact operational efficiency, regulatory compliance, and profitability.
Get Expert Force Measurement Solutions Today
Don't compromise on accuracy or reliability in your critical weighing applications. Contact VPG Force Sensors to speak with our application engineers about specifying the right double-ended shear beam load cells for your requirements, or download our technical specification guide for detailed performance data and installation recommendations.
Ready to upgrade your weighing system? Visit our online shop at shop.vpgforcesensors.com or call our technical sales team to discuss your project requirements and receive a custom solution proposal within 24 hours.
Get Expert Guidance for Your Application
Finding the right load cell for your system requires careful consideration of capacity, accuracy, environment, and installation factors. Our experienced engineers are ready to help you choose the optimal solution.
