Single-Ended Shear Beam Load Cells
Industrial Force Sensors Built for Precision
Precision Force Measurement for Industrial Applications
In today's competitive industrial landscape, accurate weight measurement is not just a requirement—it's a business imperative. VPG Force Sensors' Single-Ended Shear Beam Load Cells deliver the precision, reliability, and long-term performance that scale manufacturers and industrial weighing system integrators worldwide depend on.
Designed for medium to high-capacity applications, our single-ended shear beam load cells solve critical challenges faced by weighing professionals: inconsistent measurements due to off-center loading, premature failure in harsh environments, costly downtime from unreliable sensors, and complex installation procedures that increase labor costs. Our engineered solutions address these pain points head-on with proven strain gauge technology, robust construction that withstands industrial conditions, and simplified installation that reduces integration time and costs.
Backed by over 50 years of manufacturing excellence and featuring our industry-leading brands—Tedea-Huntleigh, Sensortronics, Revere, and Celtron - VPG Force Sensors provides the performance and precision that only one of the world's largest load cell manufacturers can deliver.
Key Challenges We Solve:
- Measurement Drift: IP67/IP68 rated load cells resist moisture, dust, and temperature fluctuations
- Space Constraints: Compact low-profile design fits where traditional load cells cannot
- Side Load Interference: Advanced shear beam construction on special requirements minimizes off-center loading errors
- Regulatory Compliance: NTEP and OIML certifications ensure legal-for-trade requirements
- Component Failure: Rugged alloy steel and stainless steel construction for harsh environments
As one of the world's largest load cell manufacturers, VPG Force Sensors unites four legendary brands—Sensortronics, Revere Transducers, Celtron, and Tedea-Huntleigh—delivering decades of proven engineering expertise.

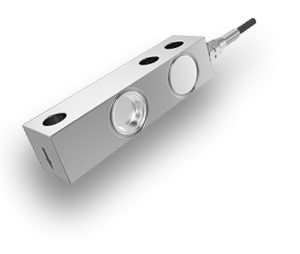

What is a Single-Ended Shear Beam Load Cell?
A single-ended shear beam load cell is a precision force transducer utilizing a cantilever design where one end is rigidly fixed while load is applied to the opposite end—similar to a diving board. This configuration provides superior accuracy and durability for industrial weighing.
How It Works:
The load cell contains a precisely machined metal element with an internal web structure. When force is applied, strain gauges bonded at 45-degree angles detect shear deformation and convert it into proportional electrical signals via a Wheatstone bridge circuit. This measurement principle provides superior performance over bending beam designs.
Technical Advantages
- Excellent Side Load Rejection: Blind-hole design on special requirements cancels torque and off-center loads
- Wide Capacity Range: 250 lbs (113 kg) to 20,000 lbs (9,072 kg)
- Low Profile Design: Compact for space-constrained installations
- Environmental Protection: IP67/IP68 ratings withstand harsh conditions
Core Features: Engineered to Meet Your Weighing Challenges
Superior Accuracy &
Performance
✔ High-precision strain gauge technology for exceptional accuracy
✔ NTEP Class III & IIIL certifications (5,000 to 10,000 divisions)
✔ OIML R-60 certified for international trade compliance
✔ Low profile design for integration into restricted spaces
✔ High sensitivity options (2mV/V and 3mV/V)
Robust Construction &
Reliability
✔ Nickel-plated alloy steel and stainless steel construction options
✔ Hermetically sealed to IP67/IP68 standards for moisture protection
✔ Excellent resistance to shock loading and side forces
✔ Factory Mutual (FM) approved for hazardous locations (Class I, II, III)
✔ Built for long-term reliability in demanding industrial environments
Versatile Capacity
Range
✔ Wide range from 250 pounds to 20,000 pounds (125 kg to 10,000 kg)
✔ Multiple mounting configurations: threaded or through-hole
✔ Ideal for single or multiple load cell installations
✔ Compatible with standard mounting accessories and weigh modules
✔ Customizable options available for specialized applications
Simplified Integration &
Installation
✔ Low sensitivity to axial and off-center loads on special requirements reduces calibration complexity
✔ Single-ended mounting simplifies mechanical installation
✔ Compatible with industry-standard instrumentation and indicators
✔ Comprehensive mounting assembly options available
✔ Reduced installation time translates to lower labor costs
Industry Applications
Platform & Floor Scales
Applications: Industrial floor scales, pallet scales, drum scales
Products: Sensortronics 65023, Celtron SQB, Revere 9123
Capacities: 1,000 - 20,000 lbs per load cell
Vessel, Tank & Hopper Weighing
Applications: Silos, storage tanks, mixing vessels, process hoppers
Industries: Chemical, food processing, pharmaceutical manufacturing
Products: Revere ACB, Tedea-Huntleigh 3410, Sensortronics 65023A
Case Study: Pharmaceutical manufacturer achieved ±0.1% accuracy in active ingredient batching, reducing waste by 3% annually while maintaining FDA compliance.

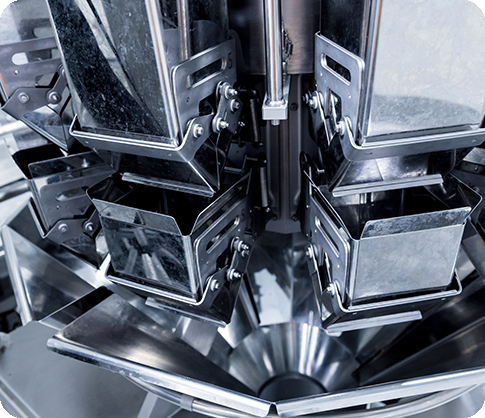

Food Processing & Packaging
Applications: Checkweighing, filling machines, portion control, washdown environments
Products: Revere 9123 (stainless), Tedea-Huntleigh 3411 (stainless)
Features: IP68 protection, 3-A Sanitary Standards, hermetic sealing
Truck Scales & Vehicle Weighing
Applications: Above-ground truck scales, pit scales, axle weighing
Products: Sensortronics 65023 (20K capacity), Celtron SQB
Case Study: Quarry operation eliminated monthly re-certification and reduced weighbridge downtime by 85%.
Main Uses for Single-Ended Shear Beams
Low-Profile Multi-Cell Weighing Systems
Ideal for floor scales, platform scales, and pallet scales where installation height is constrained. Multiple load cells distribute weight with parallel electrical connection.
Industrial Process Weighing
Tank weighing, hopper scales, silo weighing for precise inventory management and batch process control in chemical, food, and pharmaceutical production.
Commercial Legal-for-Trade Applications
NTEP and OIML certified models meet requirements for truck scales, retail platform scales, and shipping/receiving scales.
Harsh Environment Weighing
Hermetically-sealed stainless steel versions withstand washdown, chemical exposure, outdoor weather in food processing, marine, wastewater, and mining.
OEM Scale Integration
Equipment manufacturers integrate our load cells into agricultural equipment, medical devices, industrial processing machinery, and material handling equipment.
Who Manufactures the Best Single-Ended Shear Beams?
VPG Force Sensors leads the industry with over 60 years of engineering expertise and the legacy of four premier force measurement brands.
Unmatched Brand Heritage: Our portfolio includes Sensortronics, Revere Transducers, Celtron, and Tedea-Huntleigh. Sensortronics shear beams are widely recognized as the industry's best for performance and quality, preferred by scale manufacturers worldwide.
Global Manufacturing Scale: As one of the world's largest load cell manufacturers, we ensure consistent quality, competitive pricing, and reliable supply chain performance.
Comprehensive Product Range: From 250 lbs to 20,000 lbs capacity, in both alloy steel and stainless steel, with various mounting configurations and certification levels.
Advanced Strain Gage Technology: Our proprietary foil strain gage technology provides superior accuracy, stability, and temperature compensation compared to conventional strain gages.
Why Choose VPG Force Sensors?
60+ Years of Experience: Decades of precision force measurement expertise- World's Largest Manufacturer: Global scale ensures product availability and reliability
- Industry-Leading Brands: Sensortronics, Revere, Celtron, Tedea-Huntleigh
- Comprehensive Certifications: NTEP, OIML, FM, ATEX, IECEx, 3-A Sanitary Standards
- Extensive Capacity Range: 250 lbs to 20,000 lbs
- Material Options: Nickel-plated alloy steel or hermetically-sealed stainless steel
- Environmental Protection: IP67 and IP68 ratings
- Technical Support Excellence: Application engineering and custom solutions
- Proven Performance: Millions of load cells in service worldwide
- Innovation Leadership: vLite™ technology and continuous R&D investment
Get Expert Guidance for Your Application
Finding the right load cell for your system requires careful consideration of capacity, accuracy, environment, and installation factors. Our experienced engineers are ready to help you choose the optimal solution.
